Open Frame Conveyors
For demanding industrial material handling needs, Chief Asia has the solution.
With capacities available up to 10,000 metric tons per hour, we have designs available for installation in port facilities, coal, mining, biomass, and nearly any industrial operation imaginable.
Chief Trussed Open Belt (CTOB)
EFFICIENT

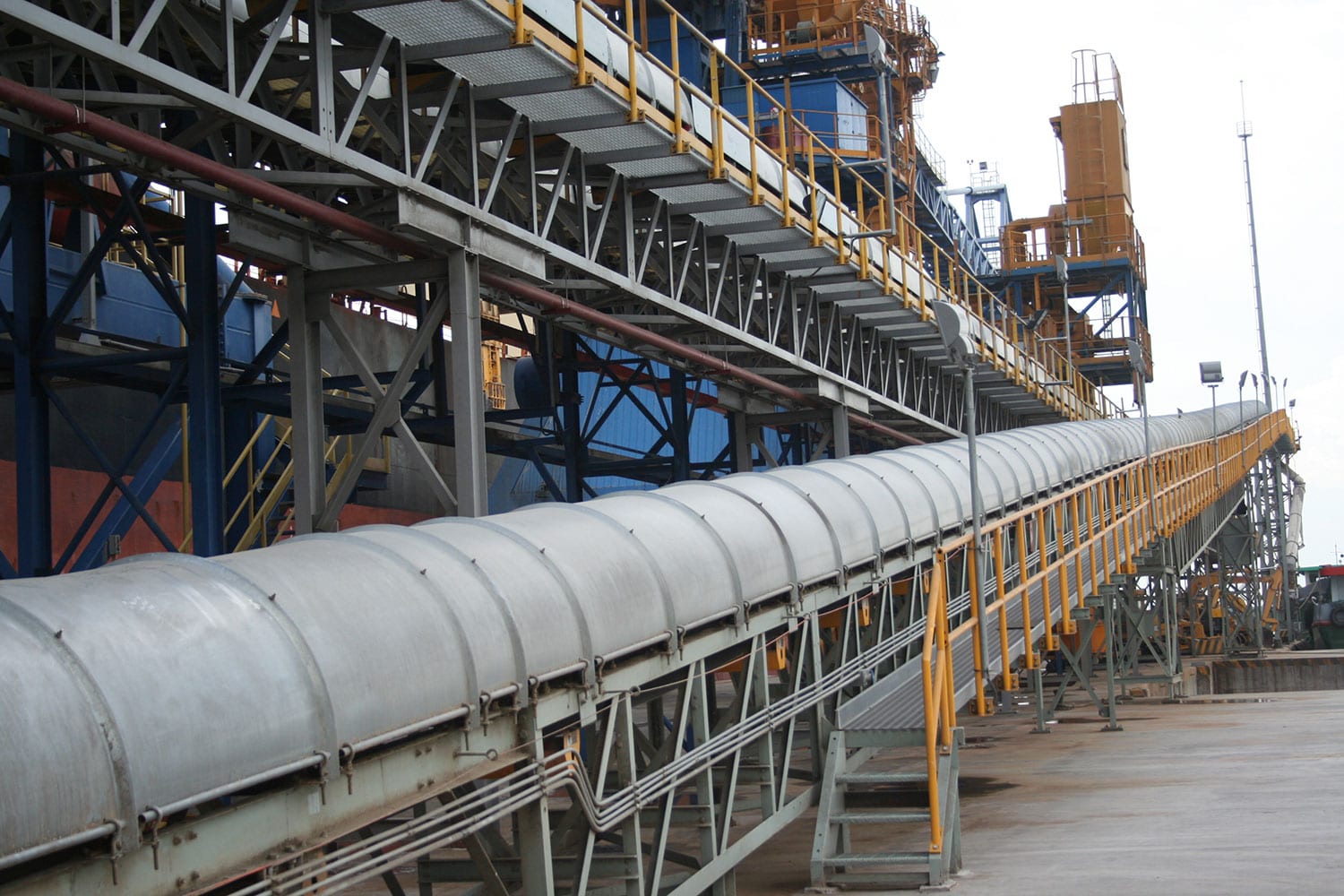

Long Truss spans and obstacle clearance – Delivered! Our Chief Trussed Open Belt conveyor with integrated box type truss is ideal for long spans between support columns.
DURABLE
Components are manufactured to precise standards from heavy structural members to provide easy installation and strength.
DESIGN
By utilizing a combination of standard CEMA idlers and self-aligning idlers, this conveyor can easily transport any commodity for extended distances. Common options and features include: Top covers, gravity take ups, intermediate discharge trippers, walkways, and transfer towers.
GENTLE
Our low speed/high capacity design minimizes
breakage-causing impact points.
Chief Commercial Open Belt (CCOB)
EFFICIENT
Full capacity and long lengths – Delivered! Our Chief Commercial Open Belt conveyor is ideal for handling large capacities!
DURABLE
Components are manufactured to precise standards from heavy structural members to provide easy installation and strength.
DESIGN
By utilizing a combination of standard CEMA idlers and self-aligning idlers this conveyor can easily transport any commodity for extended distances. Common options and features include: Top covers, gravity take ups, intermediate discharge trippers, walkways and transfer towers.
GENTLE
Our low speed/high capacity design minimizes
breakage-causing impact points.
Specs
Chief Commercial Open Belt (CCOB) Specifications
| BPH (MTPH) 35 Degree | BPH (MTPH) 45 Degree | Inches (mm) | FPM (m/s) | Inches (mm) | RPM |
|---|---|---|---|---|---|
| 3413 | 3837 | 18 | 400 | 14 | 109.2 |
| 100 | 100 | 457.2 | 2.03 | 355.6 | |
| 8219 | 9231 | 24 | 500 | 18 | 106.2 |
| 200 | 200 | 609.6 | 2.54 | 457.2 | |
| 16110 | 18077 | 30 | 600 | 18 | 127.4 |
| 400 | 450 | 762 | 3.05 | 457.2 | |
| 23890 | 26782 | 36 | 600 | 24 | 95.5 |
| 600 | 700 | 914.4 | 3.05 | 609.6 | |
| 33203 | 37194 | 42 | 600 | 24 | 95.5 |
| 800 | 900 | 1066.8 | 3.05 | 609.6 | |
| 44049 | 49284 | 48 | 600 | 30 | 76.4 |
| 1100 | 1200 | 1219.2 | 3.05 | 762 | |
| 51699 | 57850 | 54 | 600 | 30 | 76.4 |
| 1400 | 1600 | 1371.6 | 3.05 | 762 | |
| 70253 | 78611 | 60 | 600 | 36 | 63.7 |
| 1800 | 2000 | 1524 | 3.05 | 914.4 | |
| 102588 | 114735 | 72 | 600 | 36 | 63.7 |
| 2700 | 3000 | 1828.8 | 3.05 | 914.4 | |
| 141026 | 157685 | 84 | 600 | 36 | 63.7 |
| 3600 | 4000 | 2133.6 | 0.00 | 914.4 | |
| 185537 | 207431 | 96 | 600 | 36 | 63.7 |
| 4500 | 5500 | 2438.4 | 0.00 | 914.4 |
